F305
High Capacity Wide Area Reel Mower
Jake's Take
Quality of cut, climbing ability, easy maintenance, and great productivity.

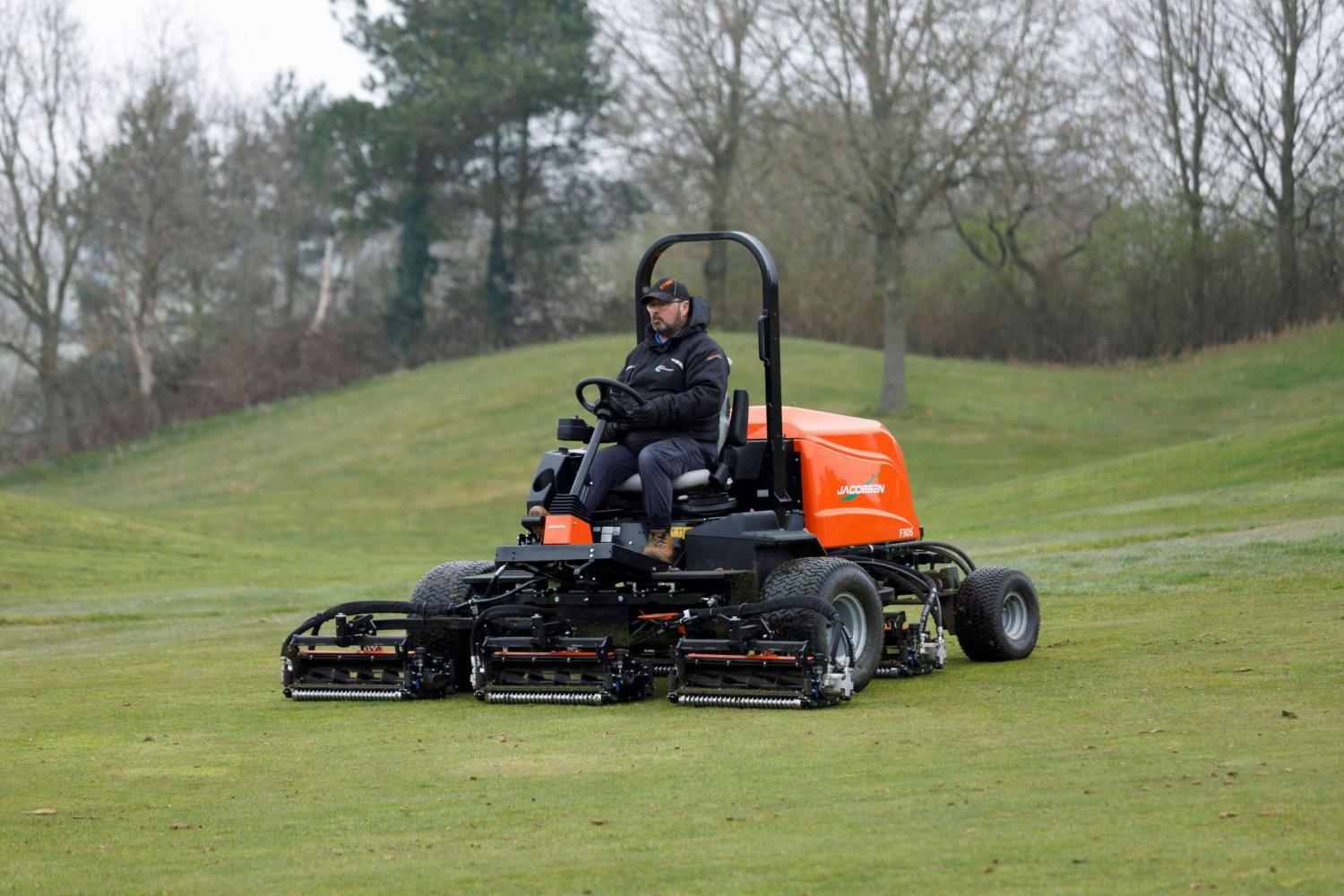

The F305 is a medium weight, four-wheel drive, 5 cutting unit sports mower. It gives you reliable and unsurpassed productivity and revolutionized operator controls and a powerful yet clean Stage V 44HP Engine. The 26” (66cm) cutting units require no tools to adjust the reels and can easily be set to discharge grass to the front or rear.
Learn More About the F305
Watch
Video
A Fine F305 Finish For All Sports Turf
Watch
Video
Key Features
Sheet
Trusted and Proven Cut Quality
Clear On-board Diagnostics
Easy Access Engine for Servicing
New Ergonomic Features
Technical Specs
Choose a Section
Key Attributes
Reels and Blades
Traction, Brakes and Speed
Weight and Dimensions
Key Attributes
Reels and Blades
Traction, Brakes and Speed
Weight and Dimensions
Mower Cutting Width | 116" (2.94 m) |
Mower Height of Cut | 0.47 - 1.85" (12 - 47 mm) |
Cutting Reels | 26" (66.4 cm) cylinder, 6.5" (165 mm) diameter floating head cutting unit (5 required) |
Mower Engine | 44.9 HP (33 kW) Diesel |
Cutting Capacity | 10.67 acres (4.32 hectares) per hr at 7.5mph (12 kph) |
Fuel/Battery Capacity (+Run Time) | 9.98 gal. (45.4 L) |
Transport Speed | Selectable up to 8.7 mph (14 kph) |
Mower Warranty | 2 Years |
Number and Size | 7 or 11 blade cutting head units, 46 cuts per metre at 7.5 mph (12 kph) |
Blade Material | Hardened, high manganese carbon steel |
Cutting Unit Lift | Wing units can be raised individually for transport |
Traction Drive | SureTrac™ Traction System with full-time four-wheel drive in forward and reverse, parallel cross series system |
Reel Drive | Fixed displacement hydraulic motors directly coupled to cutting unit |
Hydraulic System | 8.31 gal. (37.8 L) capacity; Grade of oil to A.P.I. Classification CE/SF grades SAE 10W-30 |
Service Brakes | Hydrostatic braking |
Parking Brakes | Zero-maintenance wet parking brakes |
Steering | Hydrostatic power steering with adjustable tilt steering wheel |
Mowing Speed | Selectable up to 7.5 mph (12 kph) |
Reverse Speed | Selectable up to 4 mph (6.4 kph) |
Weight | (excluding fuel) 3450 lbs. (1565 kg) |
Length (less catchers) | 116" (2.95 m) |
Overall Height (including ROPS) | 85" (2.15 m) |
Wheel Base | 65" (1.65 m) |
Transport Width | 99.2" (2.52 m) |
Working Width | 130" (3.31 m) |
