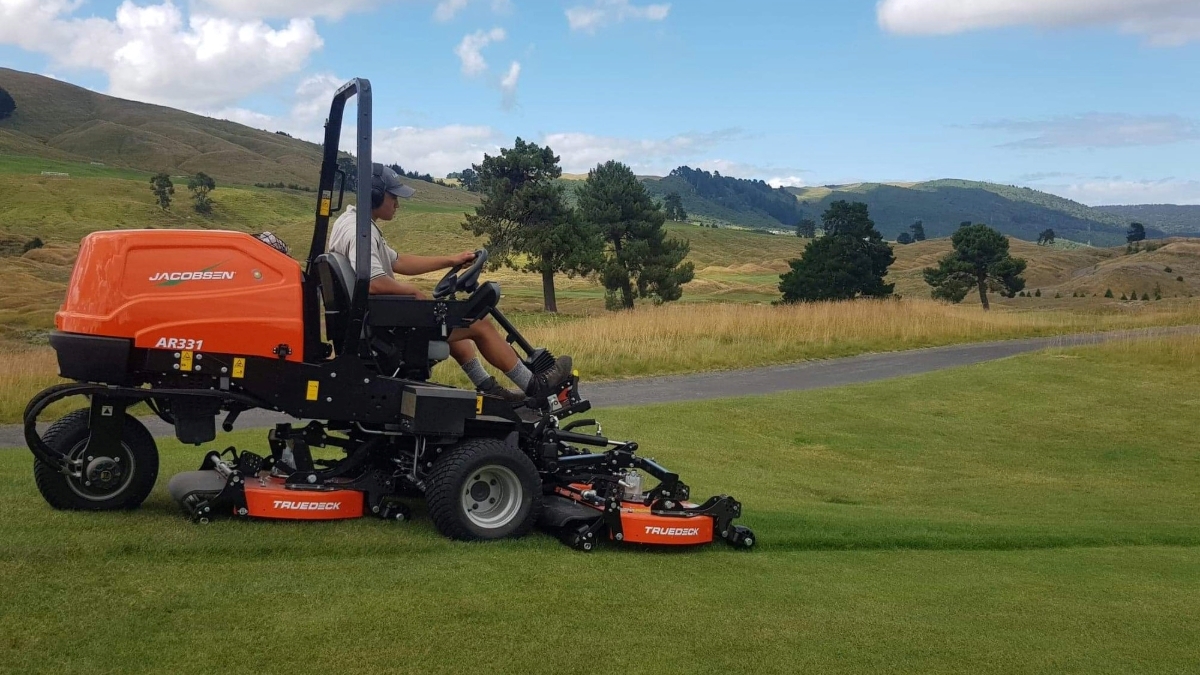

AR331
Cut around any obstacle with the AR331. This side-shifting contour rotary mower gives you power, strength, and precision at your command. Fitted with a trustworthy engine and zero maintenance parking brakes, it makes routine maintenance simple, giving you more time to spend on the turf.
With the ability to side-shift the mower decks laterally up to 12 inches, this machine is unmatched in cutting around obstacles, eliminating the need for multiple passes.
With wet parking brakes that are completely maintenance-free, the AR331 eliminates the need for regular brake maintenance and extends the overall lifespan, reducing the overall cost of ownership.
The power is distributed to three wheels on the AR331, allowing it to maintain better traction, especially on slopes and wet grass.
This valuable tool allows the operator to continuously monitor the mower's performance, alerting them of any potential problems in real time.

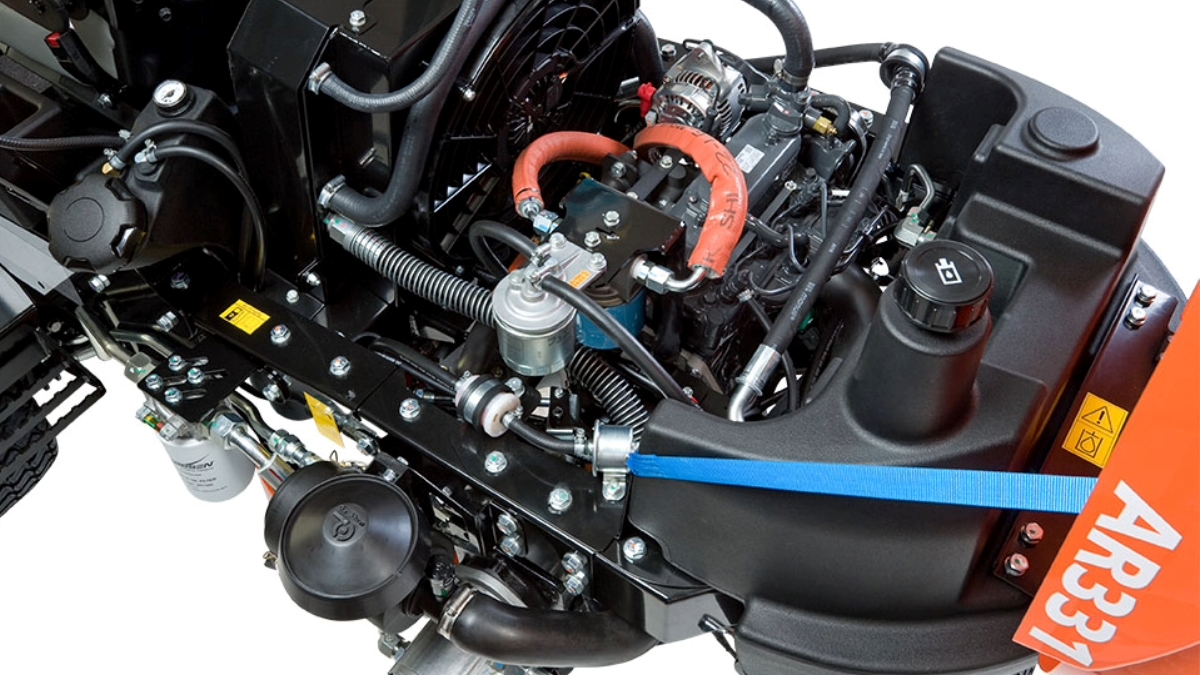

Trustworthy Engine
The AR331 is powered by a reliable 24.8HP (18.6kW) diesel engine. These engines are built for easy maintenance, with accessible and service friendly components.
Quick Deck Adjustments
Operators can easily fine-tune the mower to achieve the desired cut height and quality, ensuring a consistent and professional cut. The system has been designed in a user-friendly way so there is no need for specialized tools or extensive training.
Operator Comfort
With an adjustable mechanical suspension seat, hydraulic power steering, and a tilt steering wheel, the AR331 is not only efficient but comfortable, making it ideal for extended use in various terrains.
Transform your mowing experience with the AR331. Request a demo and experience the Jake difference.
The AR331 is highly versatile with its ability to cut on any terrain and around any obstacle with the help of innovative Adaptishift Technology. Find out more by contacting your nearest dealer.
Technical Specs
| Mower Cutting Width | 72" (1.8 m) featuring ADAPTISHIFT™ with up to 12" (0.3 m) of offset Cutting Width |
| Mower Height of Cut | 0.75 - 3.5" (19 - 88 mm) |
| Mower Engine | 24.8 HP (18.6 kW) Diesel |
| Cutting Capacity | 4.5 acres/hr at 6 mph (1.83 ha/hr at 10 kph) |
| Transport Speed | 8.7 mph (14 kph) |
| Fuel/Battery Capacity (+Run Time) | 7.6 gal. (28.7 L) |
| Mower Warranty | 2 Years |
| Number and Size | 3 x 27" (68.58 cm) TrueDeck rotary cutting units |
| Blade Material | Hardened, carbon steel alloy |
| Deck Lift/Lower | Armrest mounted joystick |
| Weight Transfer | Adjustable hydraulic, electronically activated operator control |
| Deck Construction | 9-gauge, stamped modular deck construction |
| Traction Drive | Parallel-series "on demand" 3WD |
| Deck Drive | Fixed displacement hydraulic |
| Hydraulic System | 8.7 gal. (33 L) capacity, full flow filtration (10 micron filter); GreensCare biodegradable oil. |
| Service Brakes | Dynamic braking through hydrostatic drive |
| Parking Brakes | Service-free electronic wet disc |
| Steering | Hydraulic power steering with tilt wheel |
| Mowing Speed | 6.2 mph (10 kph) |
| Reverse Speed | 3.7 mph (6 kph) |
| Tires | - |
| Weight | 2004 lbs. (909 kg) |
| Length | 122" (3.10 m) |
| Height (Rops Up) | 82" (2.06 m) |
| Wheel Base | 61" (1.54 m) |
| Transport Width | 77" (1.96 m) |
| Working Width | 77" (1.95 m) |
| Fluid Capacities | Hydraulic System and Capacity: 8.7 gal., full flow filtration (10 micron filter); GreensCare biodegradable oil |
