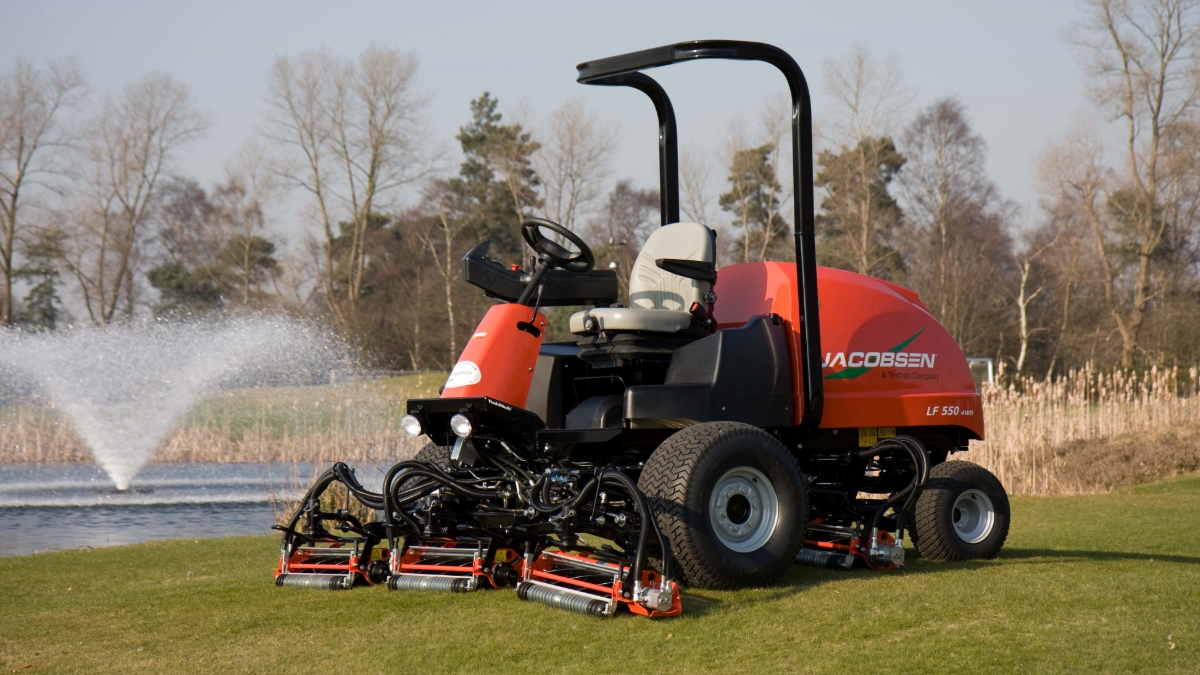

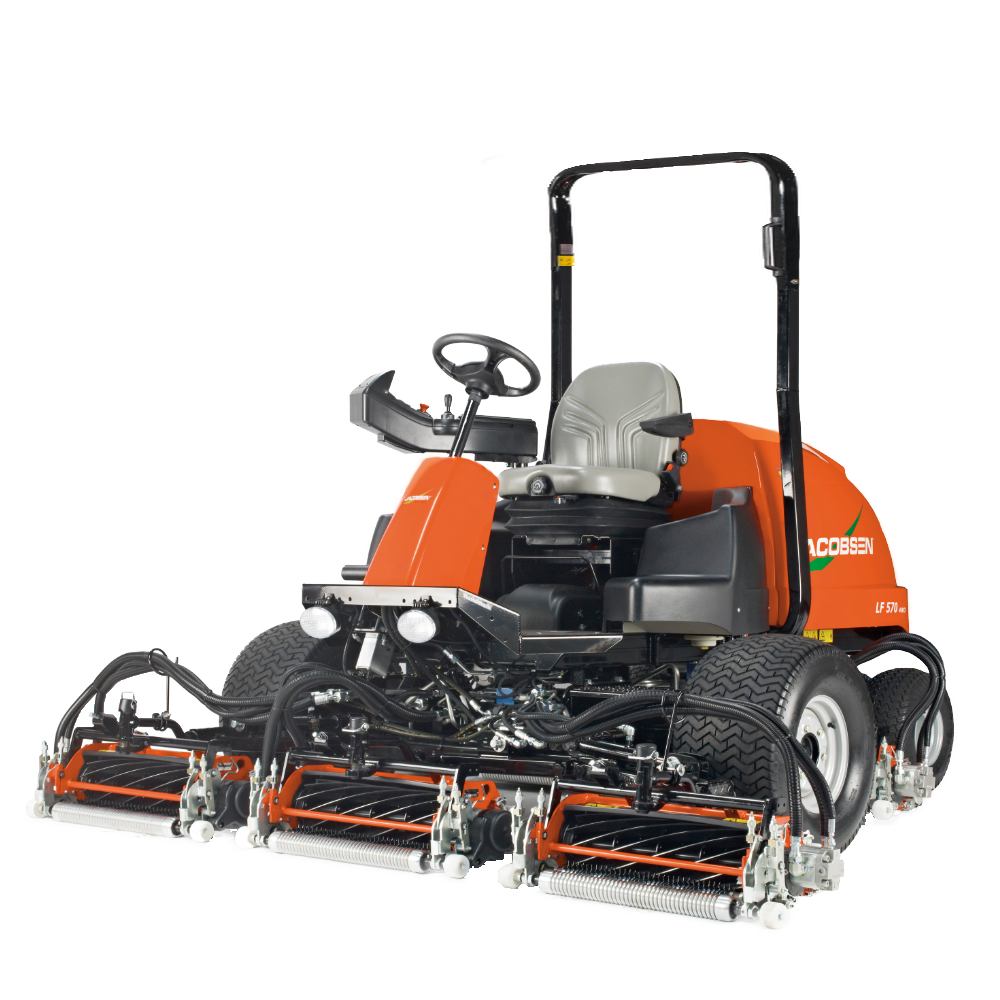

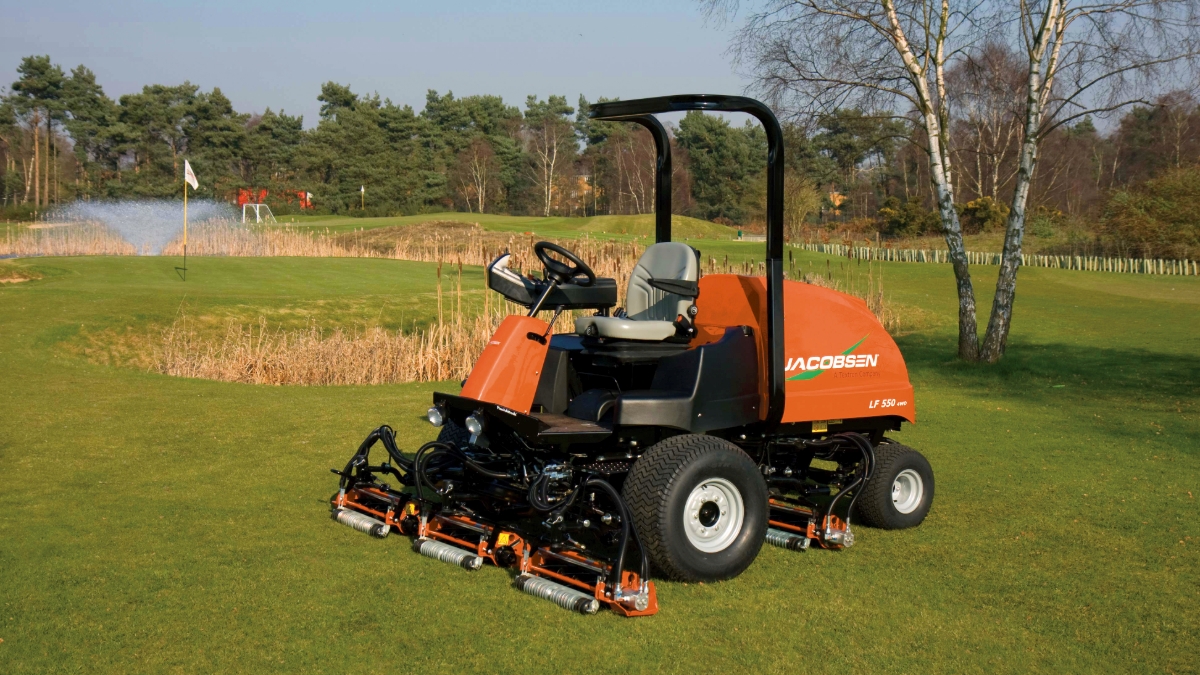

LF550
High Performance Ride-on Reel Mower
Jake's Take
Our Light and Powerful Wide Area Sports Turf Machine
The LF550 is a high-performance golf fairway mower that gives you the ability to work for longer with a lighter touch. A large fuel tank and active maintenance diagnostics prevent unnecessary disruptions, and a variety of reel options let you decide what you need for a perfect cut.

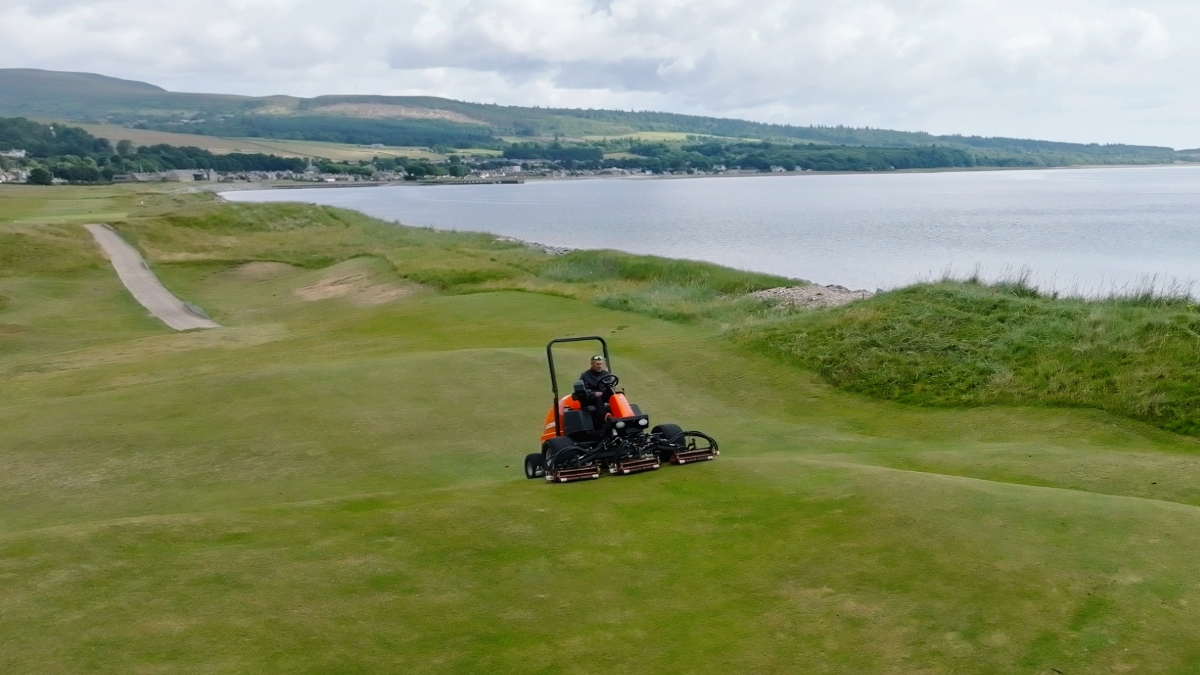

SEE HOW MORGAN’S CREEK GOLF CLUB, BRITISH COLUMBIA GETS THEIR FAIRWAYS TIGHT WITH THE TRUSTED LF550
Watch
Video
Key Features
Sheet
Jake's Signature Cut
Trustworthy Kubota® Engine
Fast Transport Speed
Outstanding Fuel Capacity
Technical Specs
Choose a Section
Key Attributes
Reels and Blades
Traction, Brakes and Speed
Weight and Dimensions
Key Attributes
Reels and Blades
Traction, Brakes and Speed
Weight and Dimensions
| Mower Cutting Width | 100" (2.54 m) |
| Mower Height of Cut | 0.375 - 0.75" (9.5 - 19 mm), Available high-cut kit raises cutting height to 1.187" (30.2 mm) |
| Cutting Reels | 5 x 5" (127 mm) diameter x 22" (55.9 cm) |
| Mower Engine | Kubota® 37.5 HP (28 kW) diesel, Kubota® 50.2 HP (37.4 kW) diesel |
| Cutting Capacity | Up to 8 acres (3.24 hectares) per hr at 8 mph (12.9 kph) (no overlaps or stops) |
| Fuel/Battery Capacity (+Run Time) | 37.5 HP - 1.08 GPH (4.08 LPH)* , 50 HP - 1.4 GPH (5.3 LPH)* (*assuming 50% load) |
| Transport Speed | Selectable up to 12 mph (19.3 kph) |
| Mower Warranty | 2 Years |
| Number and Size | 7 or 9 heavy section fairway blades. |
| Blade Material | Hardened, high manganese carbon steel |
| Cutting Unit Lift | Hand operated, joystick controlled hydraulic lift system, one-touch lift/lower control for all reels. |
| Traction Drive | Variable displacement, electronically controlled hydrostatic drive; 4WD models: SureTrac™ parallel-cross-series traction system, four high-torque wheel motors, 2WD in reverse. |
| Reel Drive | Fixed displacement hydraulic motors with FlashAttach quick disconnect coupled reel motors. Standard on-board backlapping. |
| Hydraulic System | 14 gal. (53 L) capacity; hydraulic tank oil level monitor and horn alarm; GreensCare biodegradable fluid; full-flow, 10-micron filter. Side-by-side radiator/hydraulic oil cooler. |
| Service Brakes | Dynamic braking through traction system |
| Parking Brakes | Automatic, wet parking brakes integrated in front wheel motors. |
| Steering | Rear wheel, hydrostatic power steering with tilt adjustable steering wheel. |
| Mowing Speed | Selectable Up to 11 mph (19 kph) |
| Reverse Speed | Selectable up to 5 mph (8 kph) |
| Weight | 2WD: 3036 lbs. (1377 kg), 4WD: 3367 lbs. (1527 kg), 2WD High HP: 3282 lbs. (1489 kg), 4WD High HP: 3613 lbs. (1639 kg) |
| Length (less catchers) | 108" (2.74 m) |
| Overall Height (including ROPS) | 88" (2.23 m) |
| Wheel Base | 58" (1.5 m) |
| Transport Width | 87" (2.2 m) |
| Working Width | 115" (2.92 m) |
Engine horsepower may vary due to conditions of specific use. Product available in selected countries.
