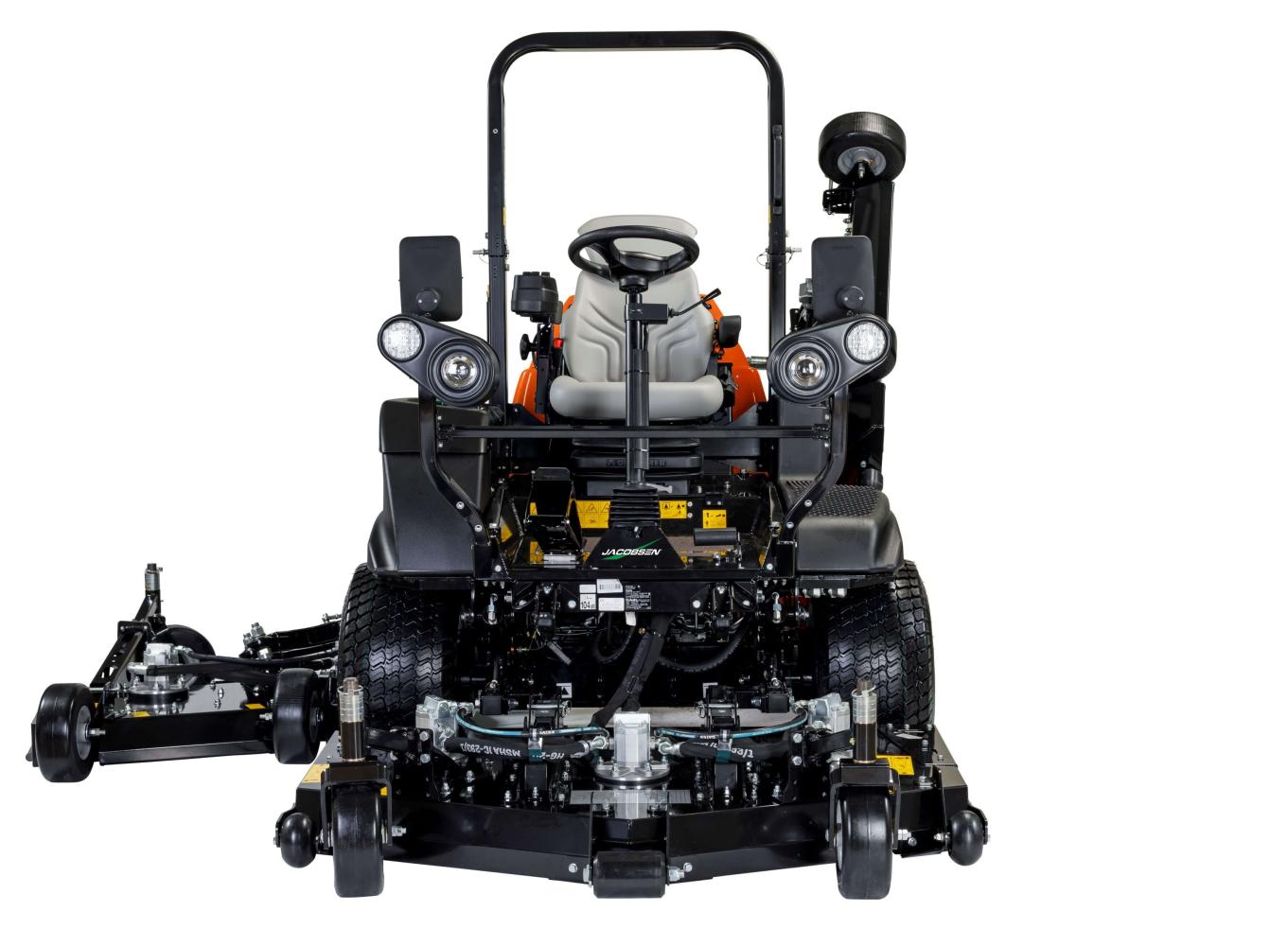

HR600
Large Area Rotary Mower
Jake's Take
Superb Power to Weight Ratio

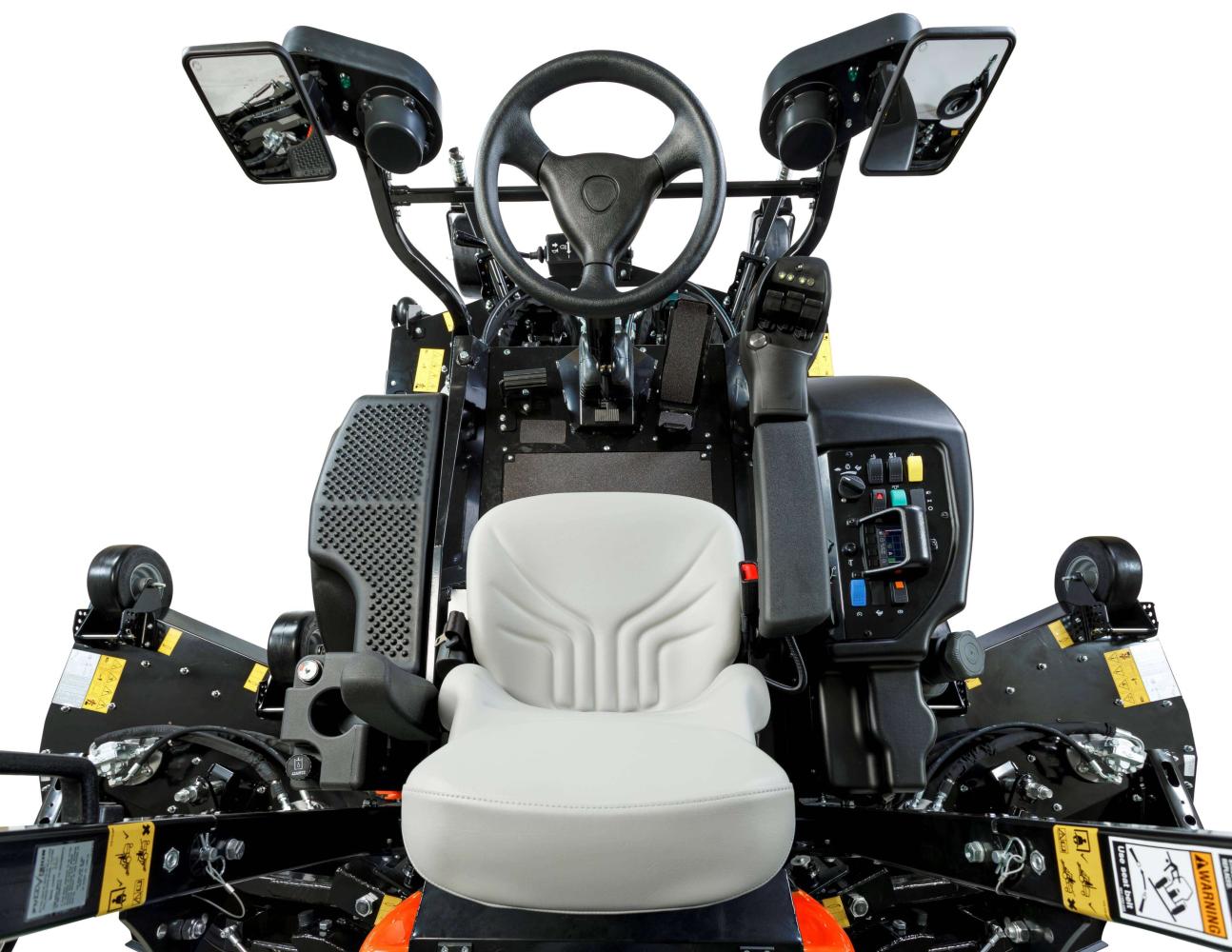

The HR600 lets you take Jake's power anywhere. A narrow 65" (1.65 m) transport width helps you reach areas other mowers can't in estates, parks, airports, and military bases. Low maintenance decks get you on the job quickly, and unrivalled comfort during operation keeps you mowing until your work is done.
Key Features
Sheet
Low Maintenance, Direct Drive Hydraulic Decks
Tilt Sensor Technology (TST) Warns of Unsafe Working Angle
Low Weight for Efficiency and Fuel Economy
Technical Specs
Choose a Section
Key Attributes
Decks and Cutting Units
Traction, Brakes and Speed
Weight and Dimensions
Key Attributes
Decks and Cutting Units
Traction, Brakes and Speed
Weight and Dimensions
| Mower Cutting Width | 137" (3.5 m) |
| Mower Height of Cut | 1 - 4.75" (25 - 121 mm) in 0.25" (6.4 mm) increments |
| Mower Engine | Kubota 65.2 HP (48.6 kW) Turbo Diesel |
| Cutting Capacity | 13.8 acres/hr at 10 mph (5.6 ha/hr at 16 kph) |
| Transport Speed | 15.5 mph (25 kph) |
| Fuel/Battery Capacity (+Run Time) | 20.4 gal. (77.1 L) |
| Mower Warranty | 2 Years |
| Number and Size | 1 x 60" (152 cm) front deck; 2 x 44" (112 cm) wing units |
| Blade Material | MARBAIN® boron alloy steel |
| Deck Lift/Lower | Individual via fingertip operated joysticks |
| Weight Transfer | On demand electrically operated hydraulic weight transfer system |
| Deck Construction | 11 gauge (3 mm) Strenx, high strength steel shell |
| Traction Drive | Hydrostatic closed loop parallel-cross-series SureTrac™ system |
| Deck Drive | Seven individual hydraulic motors with self lubricating integral bearings |
| Hydraulic System | 13.3 gal. (50.2 L) reservoir with 10 micron remote charge filters and suction screening at tank. Oil cooler in side by side radiator. |
| Service Brakes | Dynamic through hydrostatic traction system |
| Parking Brakes | Automatic wet parking brakes integrated into wheel motors |
| Steering | Power Steering |
| Mowing Speed | 10 mph (16.4 kph) |
| Reverse Speed | 4 mph (6.4 kph) |
| Tires | Front Tires: 26 x 12-12 tubeless 8 ply. Rear Tyres :20 x 10-8 tubeless 6 ply |
| Weight | 3900 lbs. (1769 kg), 4356 lbs. (1976 kg) with cab |
| Length | 143" (3.62 m) front deck down |
| Height (Rops Up) | 83" (2.1 m) |
| Wheel Base | 64" (1.65 m) |
| Transport Width | 65" (1.67 m) |
| Working Width | 143" (3.63 m) |
| Fluid Capacities | Coolant Sytem and Capacity: Side-by-side radiator/hydraulic oil cooler; pressurized; 2 gal. (7.6 L) capacity, 8.5 fins per inch |
Specifications, while correct at time of publishing, may change without notice. Available in ultra low sulfur diesel countries only. Cab optional.
